Best Block Pipe Support Sleeper
are for flat roof tops gas piping, electrical conduit and platform applications.
Basic Question and Answer
How do you attach gas pipe, refrigeration lines or electrical lines to the block?
Attaching to the block is simple. You can use standard clamps or threaded rod which will allowed the installer to alter the slope as required.
No special screws or tools to secure the pipe to the block?
The block is made from high density polyethylene and any #10 or 12 screw will do but caution should be used because excessive torque will cause the screw to spin.
What are the weight limitations of the Quick Block?
The block is guaranteed to support up to 475 pounds over its life
Will the block withstand themperture extreme?
The block plastic material has been chosen to withstand temperatures beyond the capabilities of most roofing materials. This material is used for safety helmets to garbage bins so the roof will have problems from temperature before the Best Block.
What is the life expectancy of the block?
The Best Block will outlast most roofs available today.
Engineers acceptable?
Engineers have accepted the Best Block greatly all over North America. Also Approval of the Best Block gas codes is that the gas pipe must be supported off of the roof and does not specify the required techniques.
Product Specifications

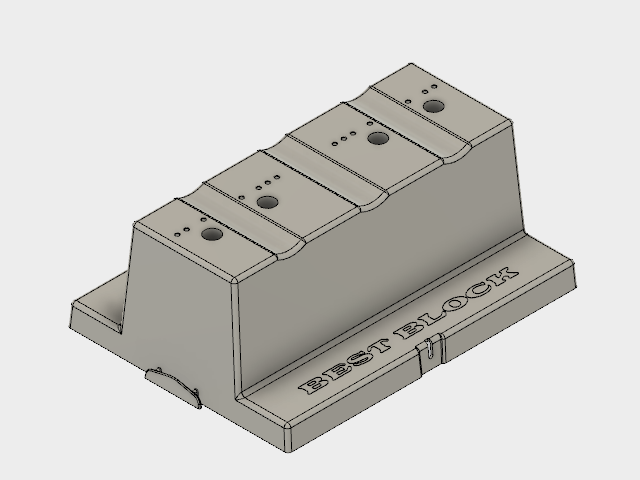

The Best Block is made of two parts: the top which is a made of moulded High Density Polyethylene and the base made from 1" extruded closed cell polystyrene which has a compression value of 20 psi.
The block design maximizes the support strength while reducing the overall weight. The interior allow for expansion and contraction of the block under extreme conditions.
The lower portion of the Best Block we have incorporated a 7/8" high wall which acts to retain the extruded polystyrene foam base and limit UV exposure to the Foam.
Screw Pull Test Results
- Material Specifications
- Polyethylene high density
- excellent cold impact resistance, good stiffness and impact balance.
- Mechanical Properties
- Tensile Strength, 3050 psi
- Elongation at yield 5%
- Impact Test 45 FT lbs per sq inch at 10 C
Thermal Properties
- Defection Temperature at 0.46 MPa (66 psi) 194 F
- Mechanical Impact 149 F
- Maximum load base of block per Sq. inch 35 lbs
Maximum Force at breakage, SCREW Pull Testing. Test using high density Polyethylene and standard 2.5 / 2.0 / 1.5 electrical clamps.
| Test Sample | Maximum Load | Average | Minimum | Maximum |
| 1. #10 Screw | 0.661 | 0.660 | 0.660 | 0.661 |
| 2. #12 Screw | 0.772 | 0.771 | 0.771 | 0.772 |
| 3. #8 Weight | Impact | No Break | Temp -25 C |
Temp 150 C |
